Raspberry Pi 3 Model B 高速起動

2025年10月11日 Raspberry Pi

Contents

OSインストール

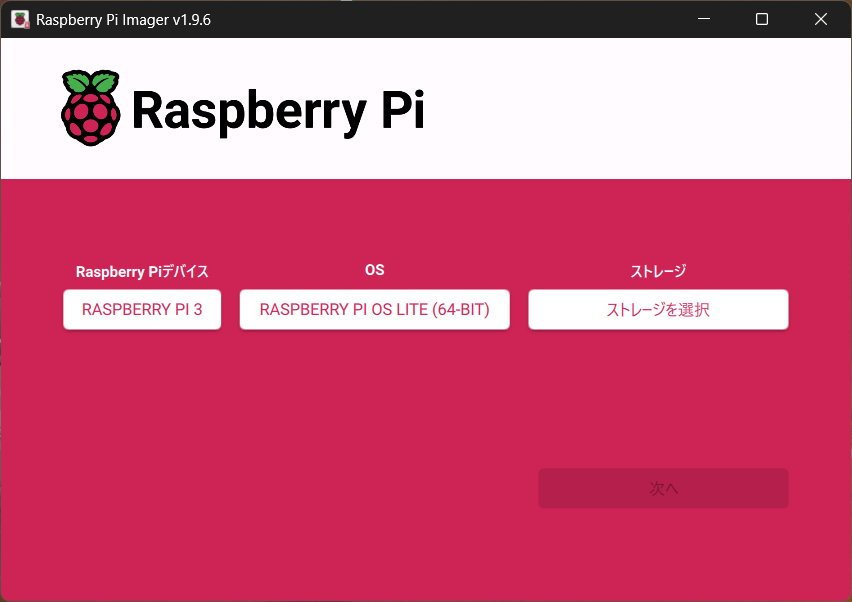

Raspberry Pi ImagerからRspbery Pi OS (Other)でRASPBERRY PI OS LITE (64-BIT)を選択してmicroSDにインストール

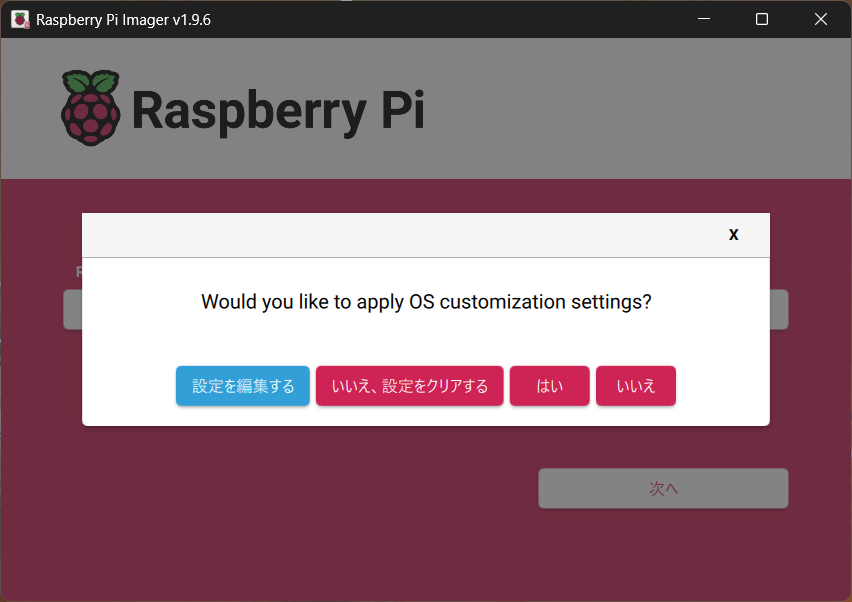

最近のRaspberry Pi OSはデフォルトのpi/raspberryが有効化されてないので、OS customization settingsでuser/passwordを作成しておく必要がある。

シリアルコンソール有効化

microSDカード内にあるconfig.txtを直接編集してシリアルコンソールを有効化する。
Raspberry Pi 3BではデフォルトではBluetoothがUART0を使ってしまっておりシリアルコンソールが使えないため、enable_uart=1とdtoverlay=pi3-miniuart-btを追記しておく必要がある。

USB-UARTケーブル接続

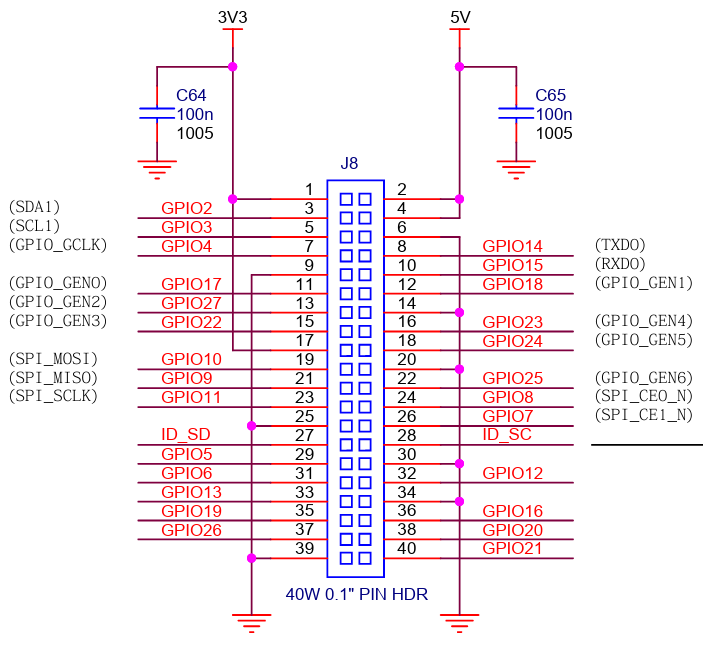

USB-UARTケーブルをGPIOの6(GND), 8(RX), 10(TX)に接続。

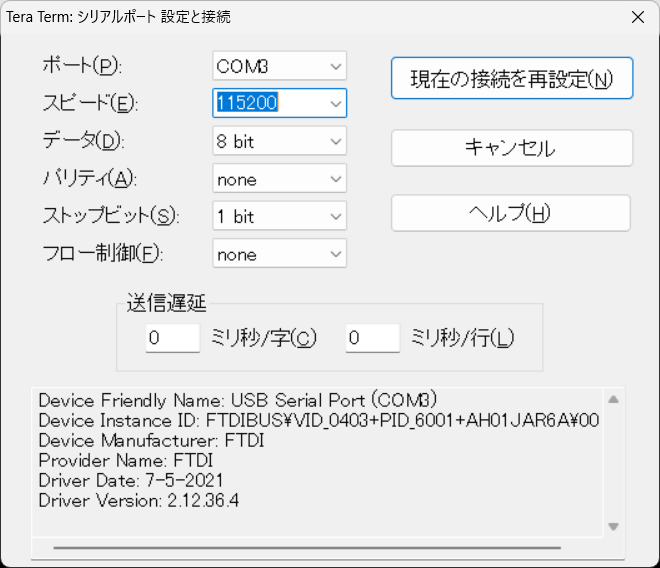

Tera Termのシリアル設定を以下の様に設定。

デフォルトの起動時間確認

systemd-analyzeで確認できる。

pi@raspberrypi:~$ systemd-analyze time
Startup finished in 5.344s (kernel) + 23.929s (userspace) = 29.274s
multi-user.target reached after 17.474s in userspace.

pi@raspberrypi:~$ systemd-analyze time

Startup finished in 5.344s (kernel) + 23.929s (userspace) = 29.274s

multi-user.target reached after 17.474s in userspace.

全体としては約30秒もかかっている。
時間がかかっているサービスを確認

pi@raspberrypi:~$ systemd-analyze blame
6.022s NetworkManager-wait-online.service
5.479s cloud-init-main.service
5.189s NetworkManager.service
2.770s dev-mmcblk0p2.device
2.529s e2scrub_reap.service
1.225s polkit.service
1.224s cloud-init-network.service
1.199s ModemManager.service
1.059s user@1000.service
 902ms wpa_supplicant.service
 687ms rpi-resize-swap-file.service
 659ms cloud-init-local.service
 585ms systemd-udev-trigger.service
 562ms systemd-rfkill.service
 552ms systemd-udevd.service
 544ms systemd-fsck@dev-disk-by\x2dpartuuid-a7b30dab\x2d01.service
 498ms keyboard-setup.service
 495ms modprobe@drm.service
 485ms modprobe@configfs.service
 483ms avahi-daemon.service
 483ms dev-mqueue.mount
 483ms sys-kernel-debug.mount
 481ms run-lock.mount
 480ms sys-kernel-tracing.mount
 479ms bluetooth.service
 457ms kmod-static-nodes.service
 436ms modprobe@fuse.service
 417ms dbus.service
 404ms cloud-final.service
 404ms systemd-tmpfiles-setup.service
 365ms systemd-zram-setup@zram0.service
 349ms systemd-binfmt.service
 347ms systemd-journald.service
 341ms systemd-modules-load.service
 327ms systemd-timesyncd.service
 318ms systemd-logind.service
 308ms cloud-config.service
 299ms systemd-remount-fs.service
 293ms systemd-hostnamed.service
 285ms rpi-setup-loop@var-swap.service
 275ms systemd-user-sessions.service
 272ms systemd-tmpfiles-setup-dev-early.service
 266ms sshswitch.service
 263ms console-setup.service
 258ms systemd-sysctl.service
 240ms systemd-udev-load-credentials.service
 237ms systemd-random-seed.service
 183ms sys-kernel-config.mount
 179ms systemd-journal-flush.service
 168ms alsa-restore.service
 165ms sys-fs-fuse-connections.mount
 149ms rpi-eeprom-update.service
 137ms proc-sys-fs-binfmt_misc.mount
 134ms dev-zram0.swap
 123ms systemd-tmpfiles-setup-dev.service
 119ms boot-firmware.mount
 102ms tmp.mount
  97ms user-runtime-dir@1000.service
  71ms modprobe@efi_pstore.service

pi@raspberrypi:~$ systemd-analyze blame

6.022s NetworkManager-wait-online.service

5.479s cloud-init-main.service

5.189s NetworkManager.service

2.770s dev-mmcblk0p2.device

2.529s e2scrub_reap.service

1.225s polkit.service

1.224s cloud-init-network.service

1.199s ModemManager.service

1.059s user@1000.service

902ms wpa_supplicant.service

687ms rpi-resize-swap-file.service

659ms cloud-init-local.service

585ms systemd-udev-trigger.service

562ms systemd-rfkill.service

552ms systemd-udevd.service

544ms systemd-fsck@dev-disk-by\x2dpartuuid-a7b30dab\x2d01.service

498ms keyboard-setup.service

495ms modprobe@drm.service

485ms modprobe@configfs.service

483ms avahi-daemon.service

483ms dev-mqueue.mount

483ms sys-kernel-debug.mount

481ms run-lock.mount

480ms sys-kernel-tracing.mount

479ms bluetooth.service

457ms kmod-static-nodes.service

436ms modprobe@fuse.service

417ms dbus.service

404ms cloud-final.service

404ms systemd-tmpfiles-setup.service

365ms systemd-zram-setup@zram0.service

349ms systemd-binfmt.service

347ms systemd-journald.service

341ms systemd-modules-load.service

327ms systemd-timesyncd.service

318ms systemd-logind.service

308ms cloud-config.service

299ms systemd-remount-fs.service

293ms systemd-hostnamed.service

285ms rpi-setup-loop@var-swap.service

275ms systemd-user-sessions.service

272ms systemd-tmpfiles-setup-dev-early.service

266ms sshswitch.service

263ms console-setup.service

258ms systemd-sysctl.service

240ms systemd-udev-load-credentials.service

237ms systemd-random-seed.service

183ms sys-kernel-config.mount

179ms systemd-journal-flush.service

168ms alsa-restore.service

165ms sys-fs-fuse-connections.mount

149ms rpi-eeprom-update.service

137ms proc-sys-fs-binfmt_misc.mount

134ms dev-zram0.swap

123ms systemd-tmpfiles-setup-dev.service

119ms boot-firmware.mount

102ms tmp.mount

97ms user-runtime-dir@1000.service

71ms modprobe@efi_pstore.service

起動時間が長いものから順に起動停止できないか確認していく。

サービス停止

必要なさそうなものを無効化していく。
　sudo systemctl disable NetworkManager-wait-online.service
　sudo systemctl disable ModemManager.service
　sudo systemctl disable cloud-init-network.service
　sudo systemctl disable cloud-init-local.service
　sudo systemctl disable cloud-init-main.service
　sudo systemctl disable buletooth.service

不要なハード・ドライバの無効化

基本的にはほとんど機能を使わないのでconfig.txtを編集して無効化
　pi@raspberrypi:~$ sudo vim /boot/firmware/config.txt
　　#dtparam=audio=on
　　#camera_auto_detect=1
　　#dtoverlay=vc4-kms-v3d
　　#max_framebuffers=2
　　dtoverlay=disable-wifi
　　dtoverlay=disable-bt

ここまでの結果が以下。
10秒は縮めることができた。

pi@raspberrypi:~$ systemd-analyze time
Startup finished in 5.299s (kernel) + 12.055s (userspace) = 17.354s
multi-user.target reached after 11.963s in userspace.
pi@raspberrypi:~$ systemd-analyze blame
4.779s NetworkManager.service
2.537s dev-mmcblk0p2.device
1.007s e2scrub_reap.service
 827ms user@1000.service
 586ms keyboard-setup.service
 578ms rpi-resize-swap-file.service
 547ms systemd-fsck@dev-disk-by\x2dpartuuid-a7b30dab\x2d01.service
 510ms sys-kernel-debug.mount
 496ms run-lock.mount
 494ms systemd-udev-trigger.service
 488ms dev-mqueue.mount
 483ms modprobe@efi_pstore.service
 474ms modprobe@fuse.service
 472ms sys-kernel-tracing.mount
 467ms cloud-init-local.service
 466ms systemd-udevd.service
 465ms modprobe@drm.service
 459ms modprobe@configfs.service
 446ms kmod-static-nodes.service
 377ms systemd-journald.service
 376ms systemd-modules-load.service
 360ms avahi-daemon.service
 348ms systemd-zram-setup@zram0.service
 339ms systemd-remount-fs.service
 315ms dbus.service
 311ms wpa_supplicant.service
 286ms systemd-udev-load-credentials.service
 277ms systemd-timesyncd.service
 253ms systemd-logind.service
 246ms systemd-hostnamed.service
 239ms rpi-setup-loop@var-swap.service
 222ms sshswitch.service
 209ms systemd-binfmt.service
 185ms systemd-tmpfiles-setup-dev-early.service
 182ms systemd-tmpfiles-setup.service
 182ms systemd-sysctl.service
 161ms rpi-eeprom-update.service
 161ms systemd-random-seed.service
 161ms cloud-init-network.service
 153ms systemd-journal-flush.service
 148ms sys-kernel-config.mount
 142ms sys-fs-fuse-connections.mount
 117ms dev-zram0.swap
 116ms tmp.mount
 105ms systemd-tmpfiles-setup-dev.service
 103ms boot-firmware.mount
 102ms console-setup.service
  98ms systemd-user-sessions.service
  83ms user-runtime-dir@1000.service
  78ms proc-sys-fs-binfmt_misc.mount
  77ms cloud-final.service
  75ms cloud-config.service
pi@raspberrypi:~$ systemd-analyze critical-chain
The time when unit became active or started is printed after the "@" character.
The time the unit took to start is printed after the "+" character.

multi-user.target @11.963s
mqgetty.target @11.960s
  mqserial-getty@ttyAMA0.service @11.957s
    mqsystemd-user-sessions.service @11.842s +98ms
      mqnetwork.target @11.825s
        mqNetworkManager.service @7.042s +4.779s
          mqdbus.service @6.706s +315ms
            mqbasic.target @6.686s
              mqsockets.target @6.684s
                mqsystemd-hostnamed.socket @6.682s
                  mqsysinit.target @6.645s
                    mqsystemd-binfmt.service @6.433s +209ms
                      mqproc-sys-fs-binfmt_misc.mount @6.550s +78ms
                        mqsystemd-journald.socket @3.302s
                          mq-.mount @3.002s
                            mq-.slice @3.002s

pi@raspberrypi:~$ systemd-analyze time

Startup finished in 5.299s (kernel) + 12.055s (userspace) = 17.354s

multi-user.target reached after 11.963s in userspace.

pi@raspberrypi:~$ systemd-analyze blame

4.779s NetworkManager.service

2.537s dev-mmcblk0p2.device

1.007s e2scrub_reap.service

827ms user@1000.service

586ms keyboard-setup.service

578ms rpi-resize-swap-file.service

547ms systemd-fsck@dev-disk-by\x2dpartuuid-a7b30dab\x2d01.service

510ms sys-kernel-debug.mount

496ms run-lock.mount

494ms systemd-udev-trigger.service

488ms dev-mqueue.mount

483ms modprobe@efi_pstore.service

474ms modprobe@fuse.service

472ms sys-kernel-tracing.mount

467ms cloud-init-local.service

466ms systemd-udevd.service

465ms modprobe@drm.service

459ms modprobe@configfs.service

446ms kmod-static-nodes.service

377ms systemd-journald.service

376ms systemd-modules-load.service

360ms avahi-daemon.service

348ms systemd-zram-setup@zram0.service

339ms systemd-remount-fs.service

315ms dbus.service

311ms wpa_supplicant.service

286ms systemd-udev-load-credentials.service

277ms systemd-timesyncd.service

253ms systemd-logind.service

246ms systemd-hostnamed.service

239ms rpi-setup-loop@var-swap.service

222ms sshswitch.service

209ms systemd-binfmt.service

185ms systemd-tmpfiles-setup-dev-early.service

182ms systemd-tmpfiles-setup.service

182ms systemd-sysctl.service

161ms rpi-eeprom-update.service

161ms systemd-random-seed.service

161ms cloud-init-network.service

153ms systemd-journal-flush.service

148ms sys-kernel-config.mount

142ms sys-fs-fuse-connections.mount

117ms dev-zram0.swap

116ms tmp.mount

105ms systemd-tmpfiles-setup-dev.service

103ms boot-firmware.mount

102ms console-setup.service

98ms systemd-user-sessions.service

83ms user-runtime-dir@1000.service

78ms proc-sys-fs-binfmt_misc.mount

77ms cloud-final.service

75ms cloud-config.service

pi@raspberrypi:~$ systemd-analyze critical-chain

The time when unit became active or started is printed after the "@" character.

The time the unit took to start is printed after the "+" character.

multi-user.target @11.963s

mqgetty.target @11.960s

mqserial-getty@ttyAMA0.service @11.957s

mqsystemd-user-sessions.service @11.842s +98ms

mqnetwork.target @11.825s

mqNetworkManager.service @7.042s +4.779s

mqdbus.service @6.706s +315ms

mqbasic.target @6.686s

mqsockets.target @6.684s

mqsystemd-hostnamed.socket @6.682s

mqsysinit.target @6.645s

mqsystemd-binfmt.service @6.433s +209ms

mqproc-sys-fs-binfmt_misc.mount @6.550s +78ms

mqsystemd-journald.socket @3.302s

mq-.mount @3.002s

mq-.slice @3.002s
